High Speed Door Installation Manual

（米兰体育官方网站 操作手册）

Part 1:High Speed Door Installation Debugging

1 、Installation Tools

2 、Basic Size

3 - 1 Checklist

3 -2 Schematic Framework

4 、Control Box Size

5 、Checklist

6 、 1—7 Installation Order

7 、 Wiring Work

8 、 The main control box circuit wiring diagram

9 、 Control Box Introduction and commissioning

10 、 1-4Limit Switch Settings

11 、 Maintenance Description

12 、 Periodic Inspection

13 、 Routine Inspection

14 、 Product Warranty

1、Installation Considerations

1、Please make sure the following matters before construction.

（1） At the installation site to confirm the size of the door openings；

（2） At the installation site,please confirm the surrounding installation location, whether the obstacles, whether the wall in the same plane.

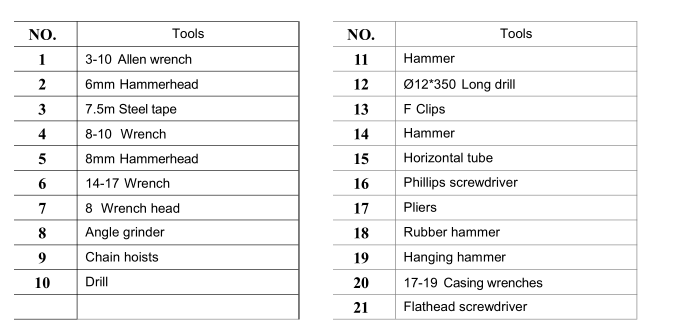

2、Tools and materials required before construction ,please be sure you have the following tools:

High speed door installation manual.pdf
